3D Printing Material: Brass

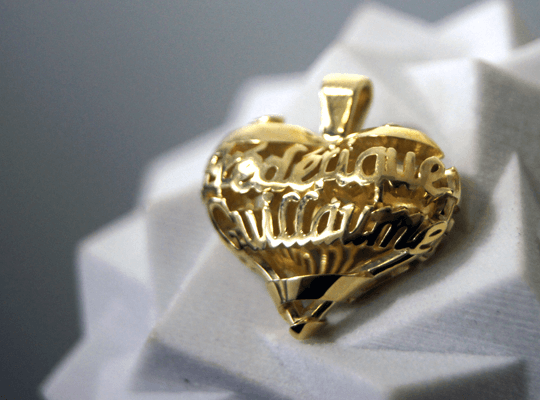

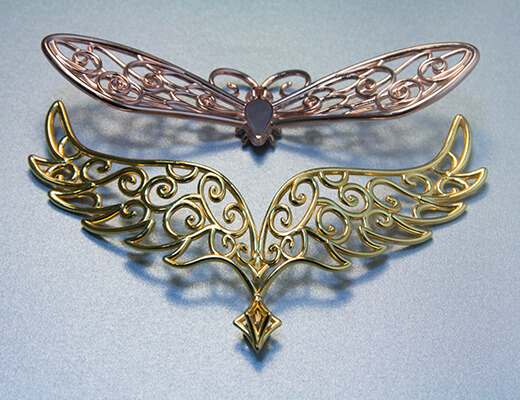

Example of Brass printing 3D printing brass 3D printing brass Example of Brass Printing Dassaut's heart: 3D printing masscustomisation With brass, large size

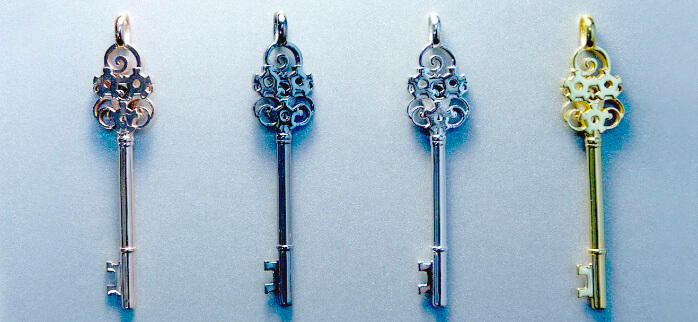

3D printing brass 3D printing brass 3D printing brass Dassaut's heart: 3D printing masscustomisation With brass, small size

Raw
Mirror polished
Pink Gold Plating
Gold Plating
White rhodium Plating
Black rhodium Plating


Overview

Here you will find all the information, tricks, know-how, and advice to help you print your 3D model in our brass material. You will learn about the:

General Information & Printing Techniques

Our Brass Material

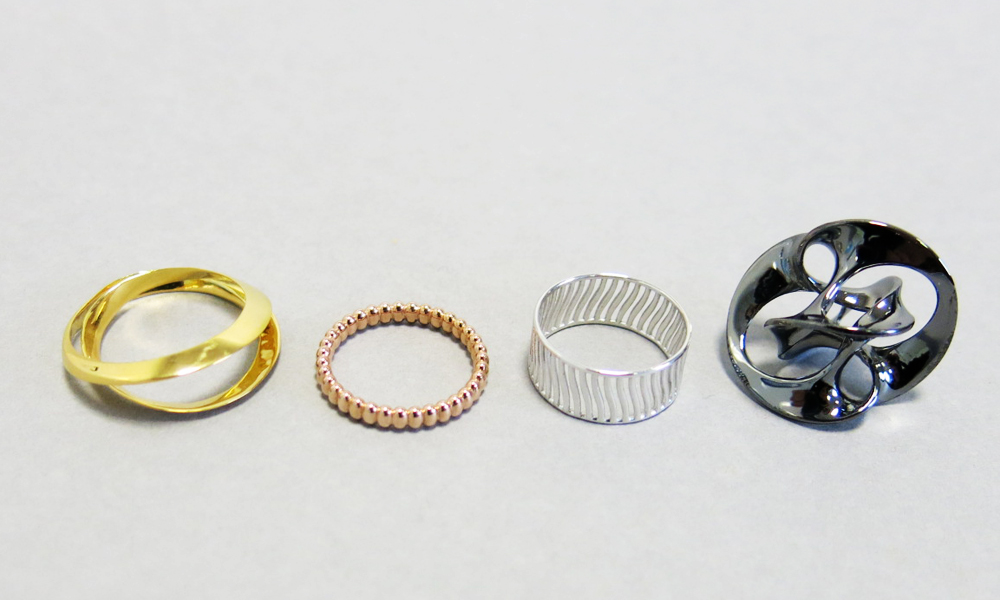

IMG_9328 copy.jpg

Sculpteo's brass material is composed of 80% copper, 15% zinc and 5% tin. It can be raw, mirror polished or mirror polished and plated. The final product is solid but susceptible to scratching and tarnishes quickly when exposed to air. It wears as would a brass product purchased from a mass producing jewelry store.

Processing Times and Pricing

The printing price of your design is calculated automatically the moment it is placed online. As you modify your object you will note that the price changes automatically. The pricing is based on a series of factors, including: total volume, object size, and bounding box.

Turn around time for our brass material is 7 to 9 business days. The plating option can extend the processing time by 2 days on average. That delay can vary depending on our 3D printers' load. The estimated shipping time is also calculated automatically as the object is uploaded.

Delivery time is in addition to the processing time. The shipping speed is determined by the shipping option you choose at checkout.

Printing Techniques


Explanation of the Brass process

For our brass 3D prints, we use a lost-wax casting technique, where the original wax model is first printed using our 3D printers. From there a mold is made around the wax, before it is melted and filled with brass, creating your object. We go into further detail below:

  • Model transferred to 3D printer
  • After creating your design with a program dedicated to 3D modelling and uploading it to our website, we automatically generate a set of supports for the model so it can be printed in wax. Those supports are removed after the printing process.

  • Wax object is printed
  • Our in house 3D wax printer is a ProJet 3500 CPX HD. The 3D printer uses a Multi Jet Printing process to fabricate the wax model. In short, small liquid wax layers are deposited on a printing bed in a series of layers which fabricate the final product. This particular process allows for an extremely high level of precision in your designs.

  • Object casted
  • Supports that were printed to maintain the objects stability during the wax printing process are removed, and the wax model is covered with a stone-like material. Two holes are left in the stone to heat and drain the wax and refill with brass.

  • Cast removal and finishing
  • The cast is then removed by hand to ensure the solidarity of the object.

Uses and maintenance

Our brass models are assumed to encounter prolonged skin contact, and will cause no harm in doing so. In fact, our brass models are particularly adept for jewellery creation.

Brass oxidises in air, especially in humid conditions. We recommend keeping your brass models separately from your other jewels and to maintain them using a soft cloth slightly moistened with soapy water.

Finishes

We propose 6 different finishes for your brass object's exterior surface.

  • Raw: The model goes through a quick sanding process, removing any of the large impurities in the object. The remaining surface is rough but wearable as a ring or otherwise.
  • Mirror Polish: The model is polished to a mirror shine in several steps through a tribofinishing machine. The mirror polishing uses a method of subtractive polishing, thus finer details may be less visible after the process. The inside of the object will also not be polished as it cannot be reached by hand.
  • White Rhodium Plating: The electroplating technique is used to plate your brass model. During electroplating, the 3D printed object is covered with a very thin layer of white rhodium, which is considered to be a precious metal. White Rhodium is similar to white gold, and is used to protect your brass object from oxidation that may suffer from its exposure to air.
  • Black Rhodium Plating: As during the White Rhodium Plating, also in this case is used electroplating. During electroplating, the 3D printed object is covered with a very thin layer of black rhodium. As black rhodium is a precious metal, it gives your 3D printed parts a dark grey tint. Moreover, it is recommended to use black rhodium plating finish on your brass objects as it protects them from oxidation.
  • Gold Plating: During this procedure, a thin layer of gold is applied onto the surface of your 3D printed brass part. As explained in the previous plating options, this option protects the brass from getting oxidized. In addition, it gives your brass objects a shiny and elegant gold surface, perfect for jewelry and decorative parts.
  • Pink Gold Plating: When you plate your brass objects with Pink Gold Plating, a thin layer of pink gold is applied on your brass model. This prevents the surface of your 3D printed from oxidation and it gives your brass items a pink-gold finish, perfectly adept for jewelry.
For additional finishes, you can contact our sales team at sales[at]sculpteo.com

Design Guidelines

Printing Resolution

Standard layer thickness 25µm


Our 3D printer, the Project 3500 CPX HD, allows us to print in high definition with a layer height of only 0.025 mm.

As a result, it is important that your uploaded file is the highest quality possible, such that no triangulation will occur in the final print. Yet, keep in mind that your 3D file cannot be up to 50Mb in size.

Size Limitations

Maximum size 88 x 88 x 120 mm
Minimum size
2.4 x 2.4 x 0.6 mm

bronze material (1)_ISFh1Sm.png

The maximum size of your models are limited by the physical size of our 3D printers - nothing can be printed larger than the printer bed.

The minimum size of your model was determined as a result of the casting. A model smaller than the parameters given is unable to complete a successful cast to be refilled with brass.

Minimum Thickness and Geometry of Your 3D Model

Minimum wall thickness 0.8 mm
Minimum wall thickness stemmed elements  1 mm
Minimum wall thickness particular design aspects
1 mm

Icon : Brass size friom 0.8 mm to
        1 mm

The walls of your design must adhere to the minimum thickness in order to guarantee the structure will be supported without breaking under its own weight. If the walls of your model are less than this minimum, you should simply thicken the walls in 3D designing program or choose a material more adapted for thin designs.

A stemmed element is a design aspect which is at least twice as long as it is thick. For unsupported and stemmed elements or parts of the design with a particular design constraint, it is also important to respect a greater thickness in order to guarantee the object will not break.  Please mind that if your model has a very weak geometry, it will need more supported structure to survive the whole casting and finishing process. Also, try to avoid the very sharp edges. Due to our intensive polishing process these edges will get rounded off, and the final result might be different than what you expected.

With a 0.8 wall thickness, your design will be slightly flexible. To obtain more rigidity, we advice a 2mm wall thickness. Brass is a relatively malleable and heavy material, it can be distorted if too much weight is applied on an area of your object. We recommend that you thicken the most stressed parts, or choose a more fitting material to your design.

Good to know

Brass is a relatively malleable material. Most stressed and fragile area may be distorted. We recommend that you thicken them to avoid distortions.



Sculpteo offers an online solidity check tool which highlights parts of the print that may be too thin for a print. From there you are able to tweak your design in order to create an object that is an appropriate thickness. To use it, you just need to upload your 3D file , select your material and clic on “Verification” tab.

Do not forget

Keep in mind that our solidity check tool does not detect physical aberrations such as floating parts, unstable position, part supporting too much weight relative to its thickness, etc. Particular care must be given to the geometry of your design and the most stressed parts must be thicken.


Etching and embossing

Minimum size of details  0.4 mm
Minimum height and width for a readable text width height: 1.5 mm
Width: 0.5 mm
Enlargement ratio
1/1

For your plated 3D printed objects,  the polished/premium cast materials the minimum wall thickness is 0.8mm. In wire it should be 1.20mm.

Explanation of the Brass Thickness with microns measure

For your plated 3D printed objects, the minimum engraved and embossed detail level should be 0.3mm for raw and 0.35 for polished cast material. The depth to width ratio should be 1:1. If the depth of the model is larger than the width we can have problems in casting.

For brass, the main determining factor in a details minimum size is the casting process. As an object is copied into a mold then refilled with brass, some etched and embossed details become more complicated to fill. Thus in order for a detail and text to be visible and will not break we recommend following our recommended sizes at the very least. To ensure a better visibility, details' width must be at least as big as their depth.

Enclosed and interlocked volumes

Enclosed parts No
Interlocking parts ? No

Icon : Wrong brass interloked parts

Brass models do not have the ability to be printed with objects enclosed within another object. This is because the object is first printed in wax, which requires supports for otherwise free-floating objects.

Minimum spacing and clearance

Minimum spacing between fixed walls  0.3 mm

Icon : Brass space on a ring

Clearance is the space between any two parts, walls or wires. Products are printed in wax, and then a liquid plaster mold is poured around them. If the clearance between features is very small, the plaster may not fully infiltrate the tiny gap. And if it does, a plaster wall that is too thin can break when the liquid metal is poured around it. Both issues can cause defects in your product.  To ensure the successful creation of your product, make the clearance between walls and wires greater than the indicated minimum. If your clearance is too small, try making the gap bigger, or consider fusing the features if their independence is unnecessary.

Piece Assembly

Assembly ? No

Icon : Wrong brass assembly

Assembled pieces are currently not possible with our brass printing option.

Hollowing

Hollowing ? No

Icon : wrong brass hollowing

As the print is first carried out in wax, the object cannot be hollowed in the manner some of our other materials are able.

Files with multiple objects

Files with multiple objects ? No

Icon : wrong brass multishell

This is not possible to 3D print a 3D file containing several objects in brass.

Multiple objects and clusters

It is not possible to print a 3D file containing several objects, that's why we cannot accept files that contain clusters of multiple objects. Though, if you wish to purchase more than one identical parts, you can select the number of parts you want to order during the checkout. The more parts you order, the lower your price per part gets.

You can also use our online tools and see our tricks and tips on how to reduce your 3D printing price.


To get more information on your metal additive manufacturing service, you can contact our qualified sales team.

Grappe Material no.jpg

Technical Specifications

Composition of our brass material
Copper: 80%
Zinc: 15%
Tin: 5%

×
